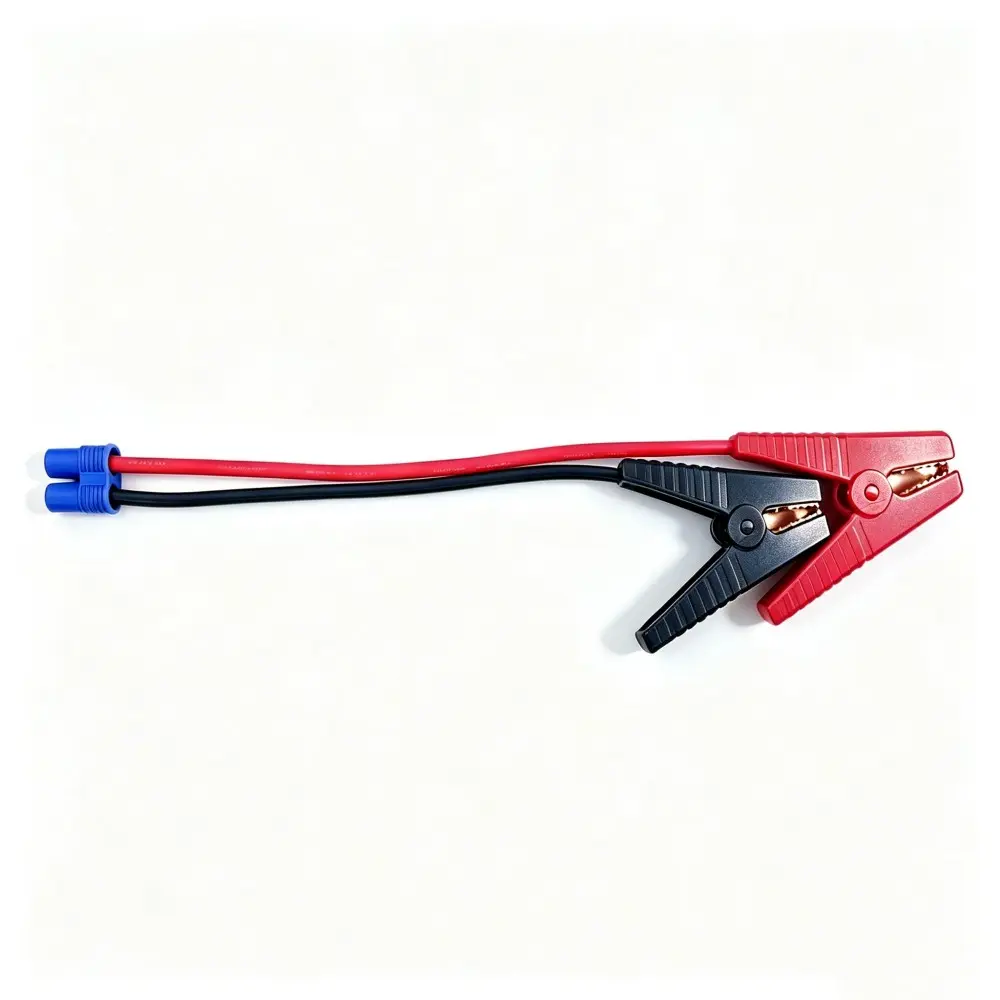

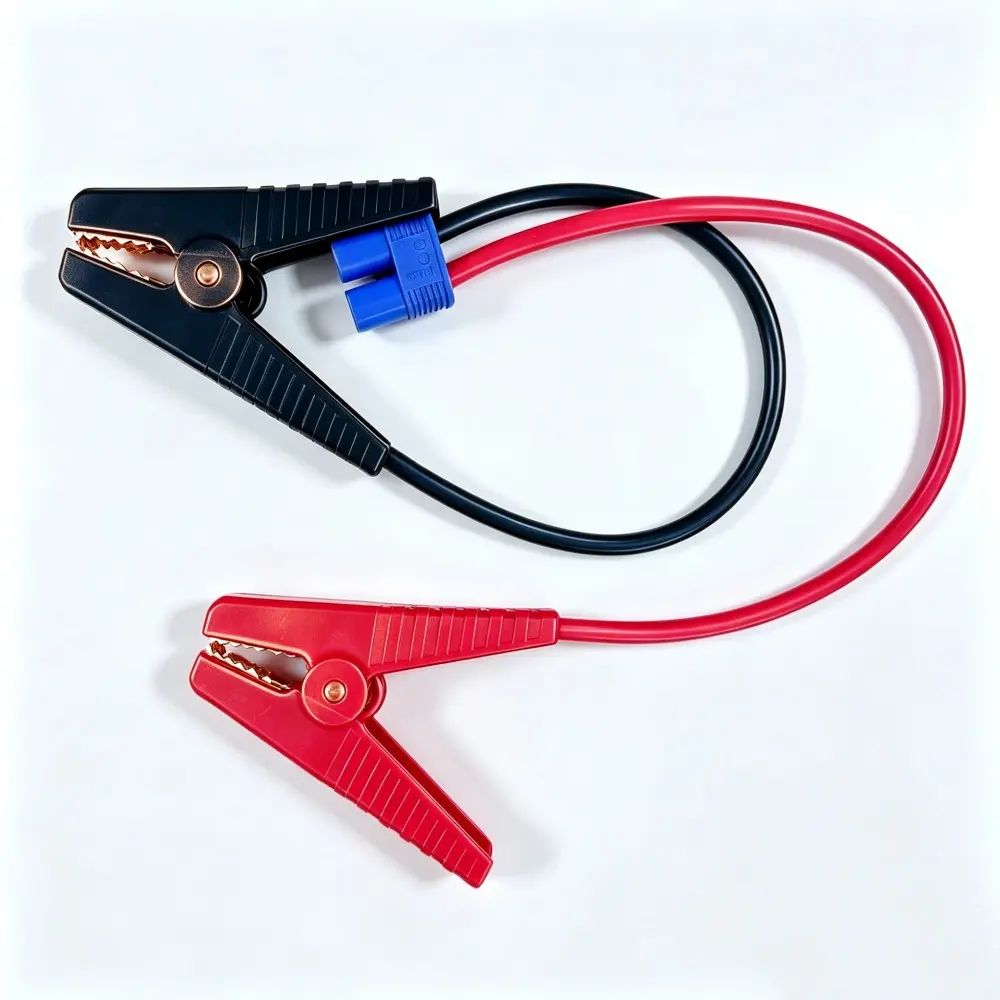

Cheap SPKSTAR 12V 24V Jump Starter Cable Replacement EC8 Alligator Clamps In Stock, Price
Product Description

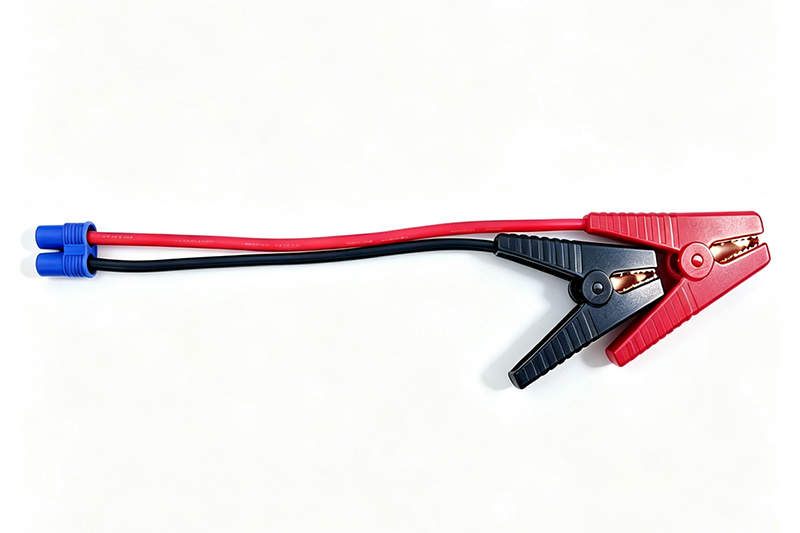

Ultra-Heavy-Duty 8 AWG Silicone Wire
Built with premium 8 AWG ultra-flexible tinned copper wiring (1650 strands of 0.08TS) wrapped in a 200℃ heat-resistant silicone jacket. Delivers maximum current transfer with minimal voltage drop and superior thermal resistance during high-cranking jump starts.

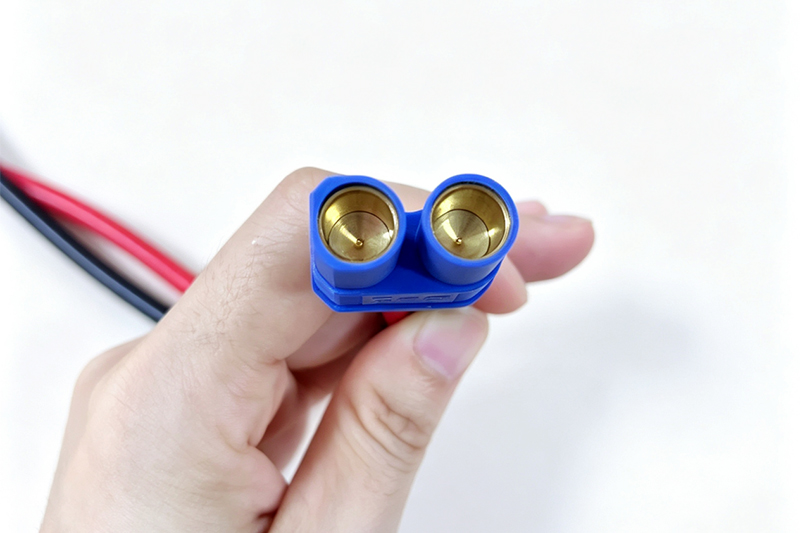

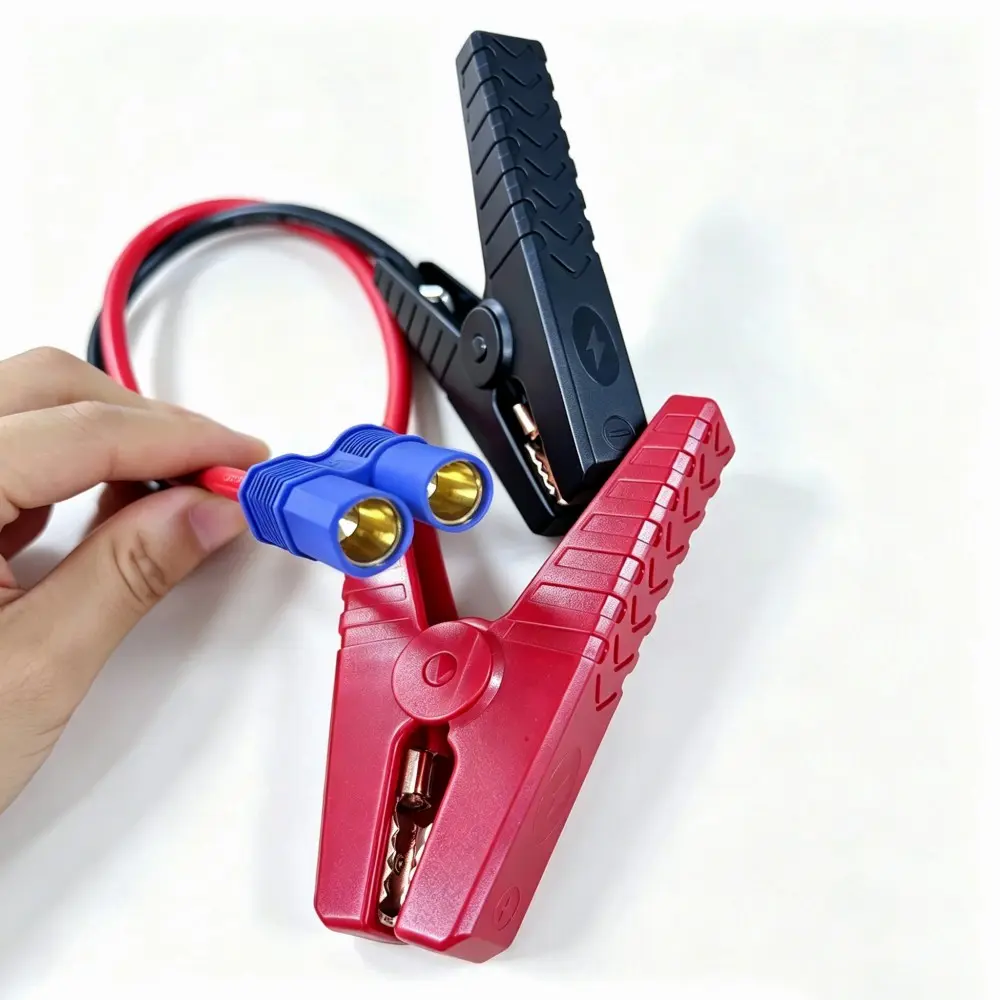

Gold-Plated EC8 Connectors
Features heavy-duty gold-plated EC8 female terminals housed in a durable blue shell. Provides ultra-low resistance, anti-oxidation, and reliable high-current power transfer for 12V/24V heavy-duty jump starters.

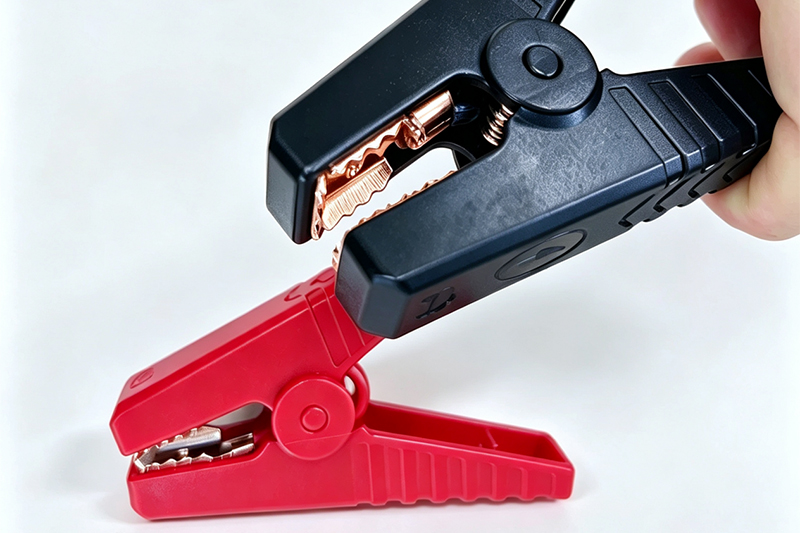

Heavy-Duty Copper-Plated Clamps with Strong Bite
Reinforced 6# ABS clamp housings equipped copper-plated teeth. Ensures a solid grip on both top and side-post vehicle battery terminals for spark-free, high-efficiency conductivity.
Dual-Wire Signal Support
Includes an auxiliary UL3135 14 AWG signal wire running alongside the primary 8 AWG power cable, enabling smart voltage sensing and feedback compatibility with intelligent jump starter power units.
Rugged & Weather-Resistant Build
Engineered to withstand harsh freezing winters and blistering hot summer environments. Fully RoHS compliant and built for tough automotive emergencies.
| SPKSTAR Model no. | SC12A |
| Connector Type | Gold-Plated Heavy-Duty EC8 Female Terminals with Blue Shell |
| Compatible Voltage | 12V / 24V High-Power Jump Starters |
| Cable Wire Gauge | Ultra-Flexible 8 AWG Pure Tinned Copper Wire (1650/0.08TS, OD: 6.0mm, 200℃ High-Temp Resistant) |
| Clamp Cable Length | Total Length: 330mm ± 3mm / Red Cable: 330mm, Black Cable: 270mm |
| Clamp Jaw Material | Flame-Retardant ABS Housing + High-Conductivity Copper-Plated Steel Teeth |
| Spring & Hardware | Galvanized Steel Wire Spring (Ø2.3mm) + White Zinc-Plated Screws |
| Color | Standard Red (+) and Black (-) Alligator Clamps |
| Environmental Standard | RoHS Compliant |
| Package Details | 1 x EC8 Heavy-Duty Battery Booster Cable with Clamps |
Quick, safe, and easy connection to jump-start your vehicle in minutes.

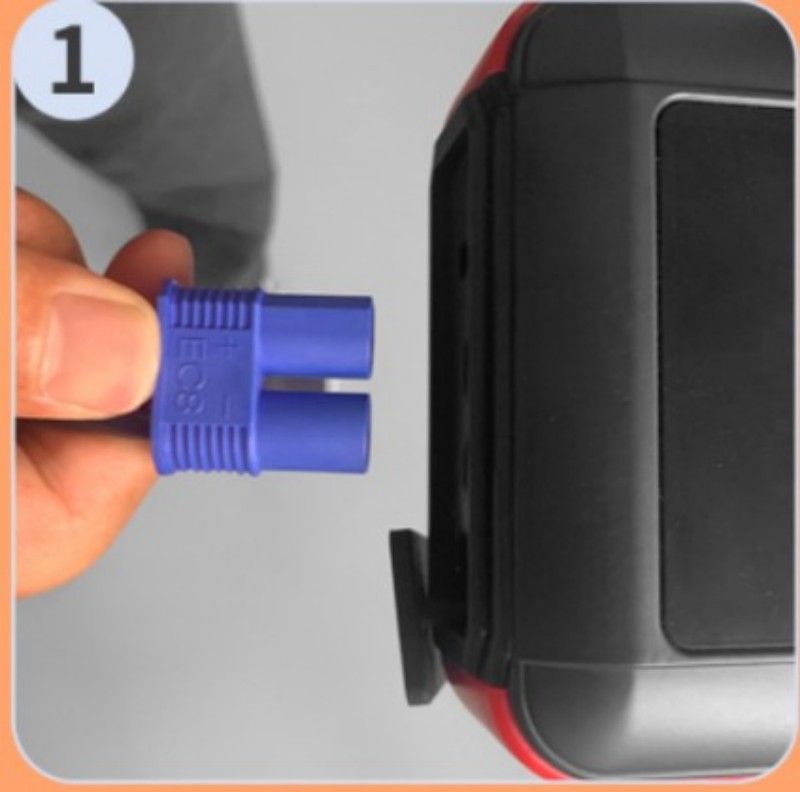

Step 1: Connect to Jump Starter
Insert the blue EC8 male connector securely into the EC8 output port of your portable jump starter.

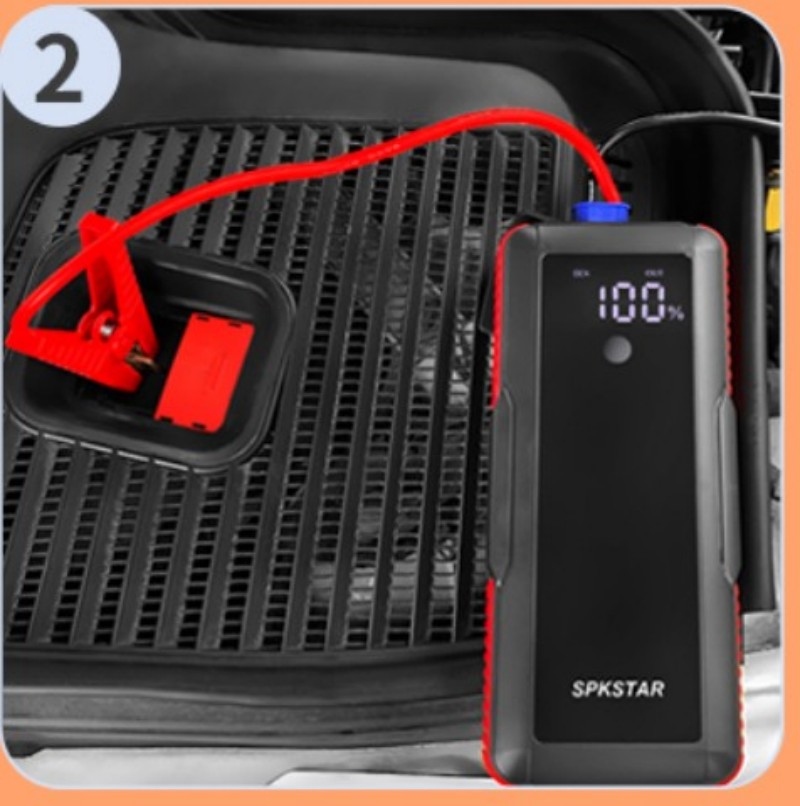

Step 2: Connect Clamps
Attach the Red Clamp to the Positive (+) terminal and the Black Clamp to the Negative (-) terminal of the battery.

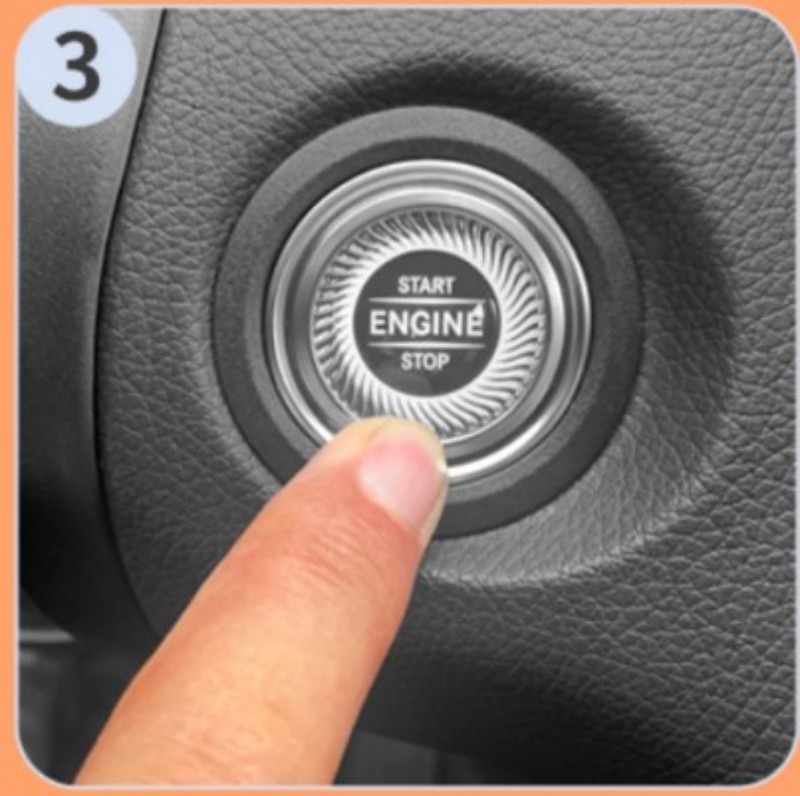

Step 3: Engine Jump Start
Turn your ignition key or press the engine START button to crank the vehicle engine.

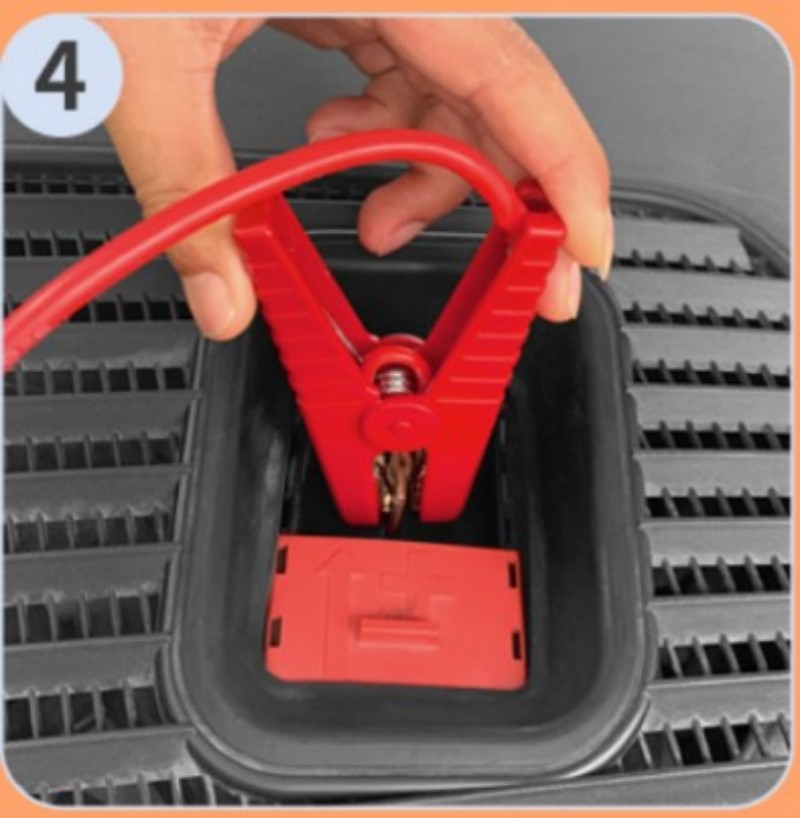

Step 4: Disconnect Clamps
Remove the clamps from the car battery once started, then unplug the EC8 connector from the jump starter.
Step 1: Pre-Charge
Pre-charge SC25 via Type-C PD or EC8 from car battery to >90%
Display: screen displays "100%" with beep when full.
Step 2: Connect & Activate
Connect clamps correctly. Press and hold "START" for 3s until 10s countdown finishes and "OUT" stays on.
Step 3: Start
Press car ignition within 30s.
Display: "OUT" stays solid with a continuous beep as the engine starts.
Step 4: Remove
Disconnect clamps from the battery. Screen indicator "OUT" turns off.
